5.2mm / 0.5mm Fibre cable sheath cutter (Static Blade)
5.2mm / 0.5mm Fibre cable sheath cutter (Static Blade)
Specification
Application

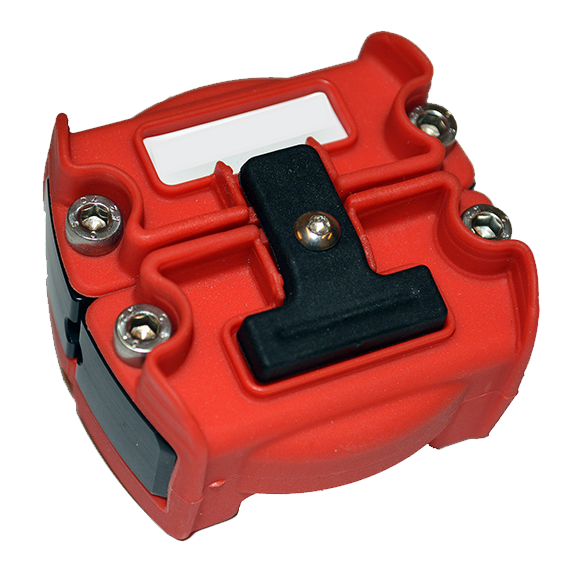

The OPT Services Light Weight Cable Preparation Tool (T03) is a small handheld precision instrument employing a fixed blade and custom profiled Cassette mechanism. The Cassettes clamp over a cable to safely and accurately slit the sheath exposing the individual elements inside.
All our tools are designed and manufactured in the UK to very high standards and tested to provide a precise and long-lasting service. This tool comes with a life time guarantee for its fixed blades.
This tool is designed to be used with OFS 12f MiDia Micro GX, 24f MiDia Micro GX, 48f MiDia Micro GX and 72f MiDia Micro GX cables but can be used on all micro 5.2mm optical fibre with a sheath wall thickness of 0.5mm.
If you have an alternative cable we can advise suitability and even perform tests to ensure 100% compatibility. Please contact us for more information
Features
- Stainless steel static blades
- Hard wearing glass filled plastic outer
- Compact design
- Manufactured and assembled in the UK
Product Code | T0297 |
Tool type | Ø5.2 x 0.5t Sheath Stripper (Static Blade) |
Dimensions (W x H x D) | 55 x 55 x 41mm |
Weight (g) | 73.5g |
